Equipment Storage - All-Welded Lockers

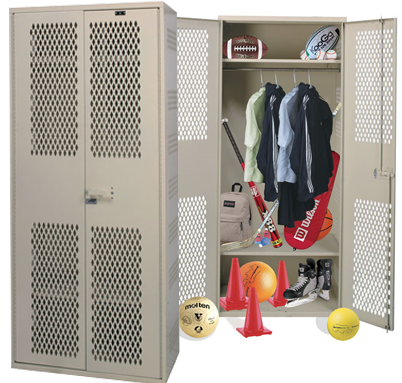

HESL-07 Equipment Storage Lockers (TA-50)
Heavy-Duty Ventilated KD stock lockers are available in single, double and six tier lockers. Production lockers are standard with 6” legs (available without legs at a nominal cost) Coat rods are available for single tier at a nominal cost.
Features:
- body construction: Unibody all-welded construction, 16 gauge 1-1/2" high continuous bottom with reinforcing channels welded to the underside at each side panel providing a rigid unit base, 16 gauge continuous top, 16 gauge diamond perforated sides are integral with front vertical frame, 18 gauge solid back. Optional solid sides are available
- doors: 14 gauge diamond perforated doors with a full height door stiffener are standard. Secure-Air-Flow, diamond perforated and louvered door styles are available
- handle: 3-point turn-handle
- door strike: Continuous vertical door strike at both hinge sides
- latching: 3/16" turn-handle welded to 11 gauge cam engaging frame at top, bottom and center side of door. 3/8" diam lock rods
- hinges: 16guage continuous piano hinge
- shelves: 16 guage hat shelf located 12" down from top, 16 guage lower shelf located 18" up from bottom
- coat rod: stainless steel full-width coat rod located under hat shelf
- warranty: lifetime
Equipment Storage Locker Sizes | |
Widths | 24'', 30'', 36'', 48'' |
Depths | 12'', 16'', 18'', 22'' |
Heights | 60'', 72'', 84'' |
Note: Equipment Storage lockers will ship in multiple column units up to 60'' wide to meet individual job site conditions. |
